How to Choose the Right LED Screen Pixel Pitch?

Choosing the right LED screen pixel pitch is one of the most important steps when planning an LED display project. Pixel pitch affects viewing distance, image detail, screen resolution, system cost, and the overall visual experience. In general, a smaller pixel pitch provides higher pixel density and clearer images at close viewing distances, while a larger pixel pitch is usually more suitable for large LED screens viewed from farther away. However, choosing the smallest available pitch does not always produce the best result.

The right choice should be based on the actual application, including viewing distance, screen size, resolution requirements, installation environment, content type, and budget. This guide explains how to choose LED screen pixel pitch, how pixel pitch affects LED display resolution and viewing distance, and which pixel pitches are commonly considered for different LED display applications.

How to Choose LED Screen Pixel Pitch: Quick Answer

To choose the right LED screen pixel pitch, first determine the shortest important viewing distance, then consider the screen size, required image detail, indoor or outdoor environment, content type, and project budget.

As a general selection principle:

• Choose a smaller pixel pitch when viewers will be close to the screen or when fine text and detailed images must remain clear.

• Choose a larger pixel pitch when the LED display will mainly be viewed from a longer distance.

• Do not choose pixel pitch based only on specifications. The smallest pitch may increase project cost without providing a visible benefit at the actual viewing distance.

For example, conference rooms and control rooms may require fine-pitch LED displays, while outdoor billboards and stadium screens can often use larger pixel pitches because viewers are much farther away.

What Is LED Screen Pixel Pitch?

LED screen pixel pitch is the distance between the centers of two adjacent LED pixels. It is normally measured in millimeters.

For example:

• P1.25 means approximately 1.25 mm between adjacent pixel centers.

• P1.86 means approximately 1.86 mm.

• P2.5 means approximately 2.5 mm.

• P3.91 means approximately 3.91 mm.

• P6 means approximately 6 mm.

• P10 means approximately 10 mm.

The letter “P” refers to pixel pitch. Therefore, the smaller the P value, the more pixels can normally fit into the same physical screen area. This is why pixel pitch is closely related to LED display resolution and viewing quality.

How Does Pixel Pitch Affect LED Display Quality?

If two LED displays have the same physical dimensions, the screen with the smaller pixel pitch will contain more pixels. More pixels generally allow the display to reproduce smaller text, smoother edges, detailed graphics, and higher-resolution video more effectively at close viewing distances.

Approximate pixel densities for common pixel pitches are shown below.

Pixel density can be estimated using the following formula:

Pixel Density ≈ 1,000,000 ÷ Pixel Pitch²

For example, a P2.5 LED display has an approximate pixel density of:

1,000,000 ÷ 2.5² = 160,000 pixels/m²

This relationship is useful when comparing different LED display configurations.

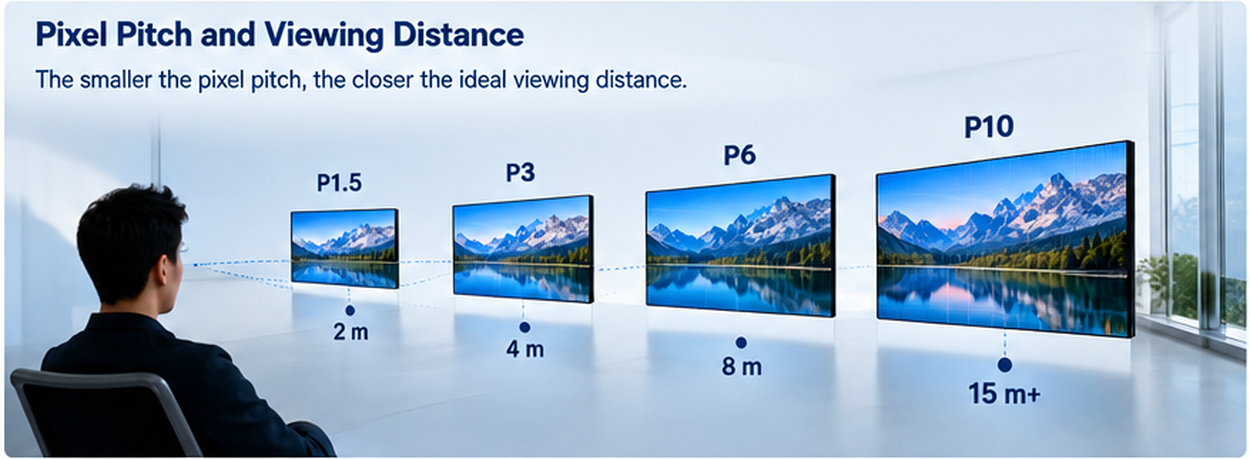

How to Match LED Pixel Pitch With Viewing Distance?

Viewing distance is usually one of the first factors to consider when choosing LED screen pixel pitch. A practical starting reference is that the pixel pitch value in millimeters can roughly correspond to the minimum viewing distance in meters. However, this should only be used as an initial estimation rather than a fixed rule.

The ideal viewing distance also depends on several other factors, including: Screen dimensions, Text size, Image and video content, Brightness, Contrast, Installation height, Ambient lighting, Viewer expectations

For this reason, viewing distance should be considered together with the complete LED display application.

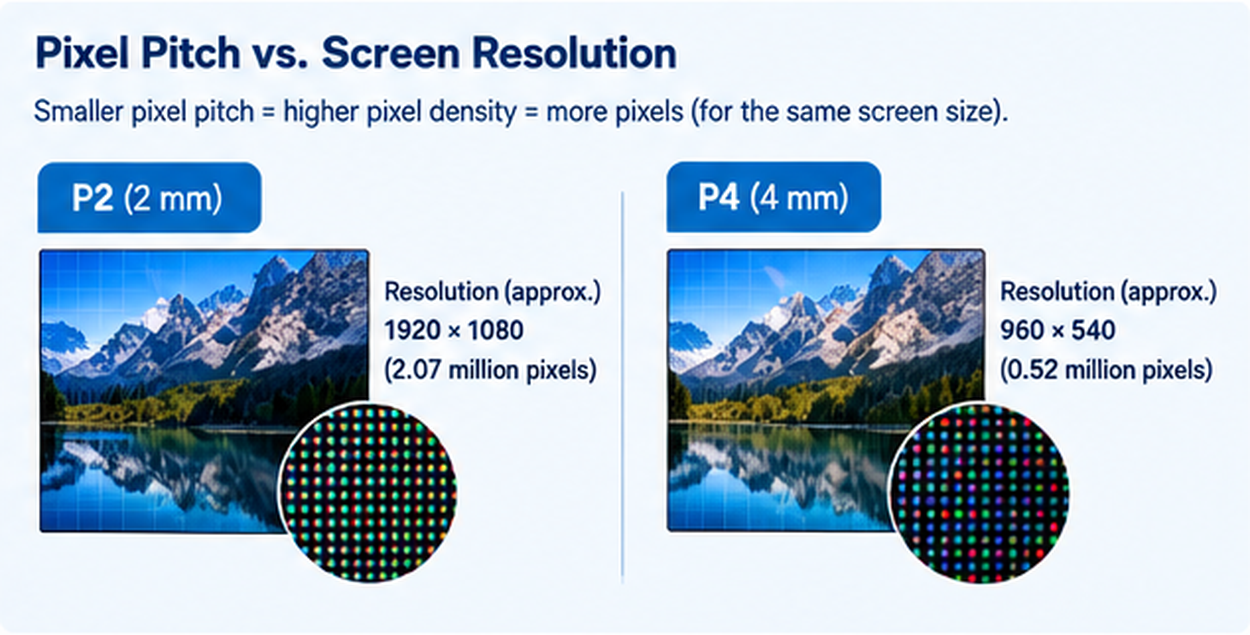

How Does Pixel Pitch Affect LED Screen Resolution?

Pixel pitch and resolution are closely related, but they describe different characteristics.

Pixel pitch describes the physical distance between pixels.

LED screen resolution describes the total number of horizontal and vertical pixels on the display.

If the physical screen size is known, the approximate resolution can be calculated using:

Horizontal Resolution = Screen Width ÷ Pixel Pitch

Vertical Resolution = Screen Height ÷ Pixel Pitch

Both measurements should use the same unit.

Example: 4 m × 2.25 m P2.5 LED Screen

Convert the dimensions into millimeters:

• Width: 4,000 mm

• Height: 2,250 mm

• Pixel pitch: 2.5 mm

Horizontal resolution:

4,000 ÷ 2.5 = 1,600 pixels

Vertical resolution:

2,250 ÷ 2.5 = 900 pixels

The theoretical resolution is therefore approximately:

1600 × 900 pixels

In an actual LED display project, the final screen dimensions are also determined by the selected LED module or cabinet dimensions. Therefore, the finished resolution may differ slightly from the theoretical calculation.

How to Choose Between Small and Large Pixel Pitch?

A common mistake is to assume that the smallest pixel pitch is always the best.

Smaller pixel pitch normally provides higher pixel density, but it can also increase: LED quantity, Module complexity, Processing requirements, Power and system requirements, Overall project cost

For example, if an outdoor advertising screen is installed high on a building and viewers are usually 30 meters away, using an extremely fine indoor-style pixel pitch may provide little visible benefit.

In this situation, a larger pixel pitch may offer a better balance between image quality, visibility, screen size, and investment.

The objective should therefore be: Choose the pixel pitch that provides the required image quality at the actual viewing distance.

It should not simply be: Choose the smallest pixel pitch available.

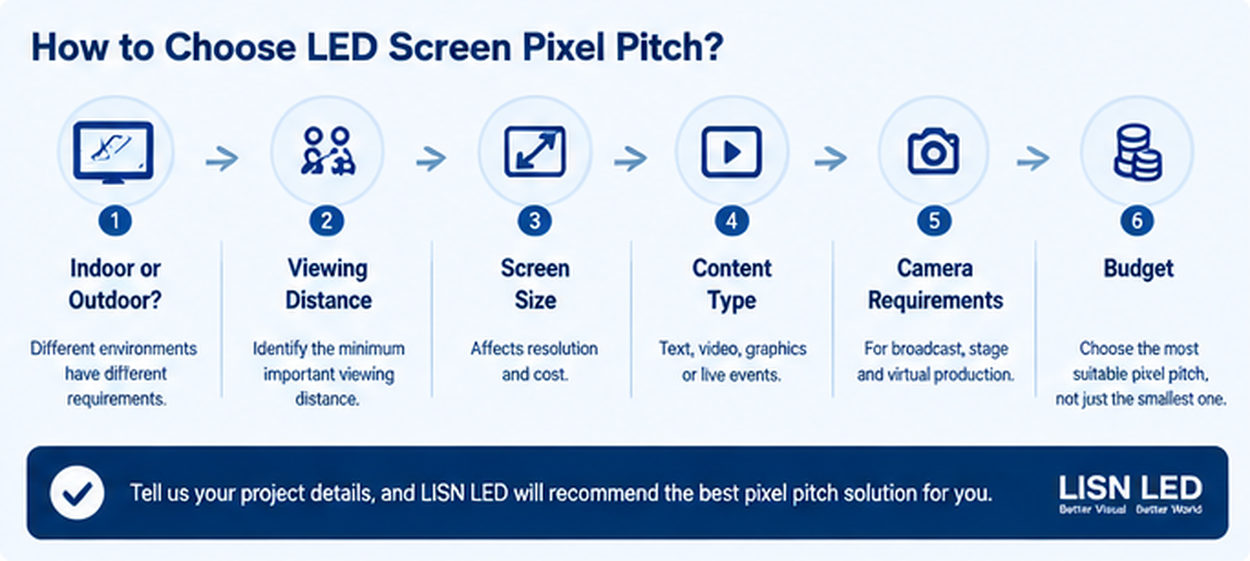

How to Choose LED Pixel Pitch Step by Step?

A practical LED screen selection process can be divided into several steps.

1. Determine Whether the Screen Is Indoor or Outdoor

Indoor and outdoor LED displays normally have different operating requirements.

Indoor displays often emphasize:

• Short viewing distance

• Fine image detail

• High grayscale performance

• Lower brightness requirements

• Quiet operation

Outdoor displays generally require:

• Higher brightness

• Weather resistance

• Longer viewing distance

• Stable structural design

• Heat management

As a result, indoor projects commonly use smaller pixel pitches, while outdoor advertising screens can often use larger pixel pitches.

2. Identify the Minimum Viewing Distance

The closest important viewer usually has the greatest influence on pixel pitch selection.

For example:

• A control room may have viewers sitting 1.5–3 meters from the screen.

• A conference room may have a viewing distance of 2–8 meters.

• A shopping mall display may be viewed from 3–15 meters.

• A concert screen may be viewed from 5 meters to more than 50 meters.

• An outdoor billboard may mainly be viewed from tens of meters away.

The shorter the minimum viewing distance, the more important fine pixel pitch becomes.

3. Determine the Screen Size

Pixel pitch should always be evaluated together with physical screen dimensions.

A 2-meter-wide P2.5 LED screen and a 10-meter-wide P2.5 screen use the same pixel pitch but have very different total resolutions.

Screen size affects:

• Total pixel quantity

• Video processor requirements

• Sending and receiving card configuration

• Power consumption

• Installation structure

• Overall budget

4. Consider the Content Type

Different content requires different levels of image detail.

If the screen mainly displays:

• Small text

• Spreadsheets

• Control data

• Technical drawings

• Detailed product images

a smaller pixel pitch may be more important.

If the screen mainly displays:

• Large advertising videos

• Brand graphics

• Stage backgrounds

• Large logos

a larger pixel pitch may still provide excellent visual performance when viewers are farther away.

5. Check Whether the LED Screen Will Be Filmed

For broadcast studios, concerts, live events, virtual production, or other applications where cameras will capture the LED screen, pixel pitch should be considered together with:

• Refresh rate

• Scan mode

• Camera distance

• Camera shutter settings

• Frame rate

• Moiré performance

A small pixel pitch alone does not guarantee good on-camera performance.

6. Compare Image Quality With Budget

The final selection should balance visual requirements and investment.

If two pixel pitches both provide satisfactory image quality at the actual viewing distance, the more economical configuration may offer better overall project value.

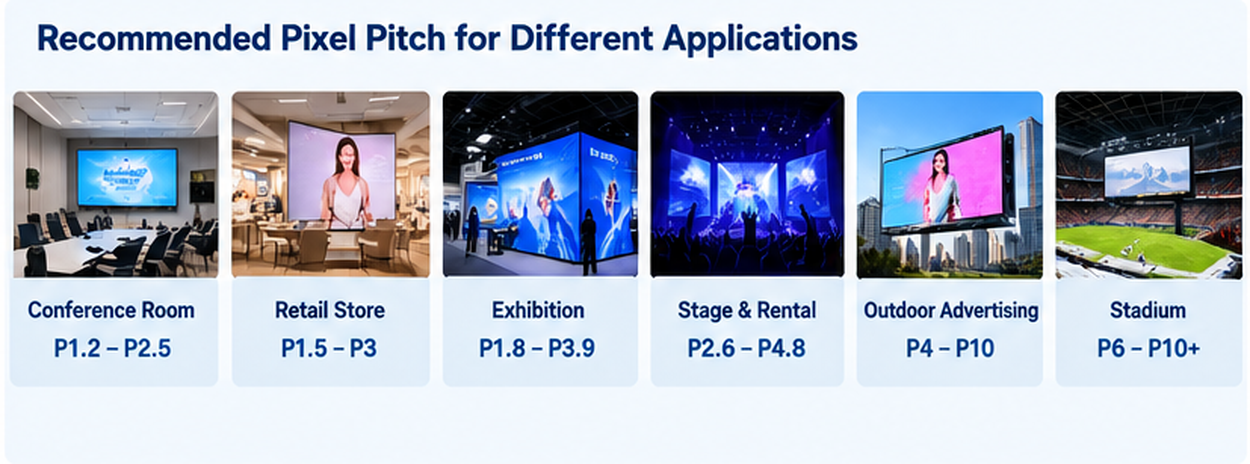

How to Choose Pixel Pitch for Different LED Display Applications?

The following table provides a preliminary reference for common applications.

These ranges are intended as preliminary references. The final LED display configuration should be based on the actual site and project requirements.

How to Choose Pixel Pitch for an Indoor LED Screen?

Indoor LED screens are often installed in environments where viewers can stand relatively close to the display.

Common indoor applications include:

• Meeting rooms

• Control rooms

• Retail stores

• Broadcast studios

• Corporate showrooms

• Museums

• Shopping malls

For these applications, smaller pixel pitches are often considered because they provide higher pixel density.

For example, P1.25, P1.5, P1.86, P2, and P2.5 may all be suitable depending on viewing distance and image detail requirements.

The selection should also consider:

• Screen brightness

• Contrast

• Refresh rate

• Grayscale

• Color consistency

• Front or rear maintenance

• Noise requirements

How to Choose Pixel Pitch for an Outdoor LED Screen?

Outdoor LED displays usually have longer viewing distances than indoor LED walls.

Common applications include:

• Building advertising screens

• Roadside billboards

• Shopping center facades

• Stadium displays

• Outdoor event screens

• Digital signage

P4, P5, P6, P8 and P10 are common outdoor options, although the exact choice depends on the installation.

Besides pixel pitch, outdoor projects should also consider:

• Required brightness

• Water and dust protection

• Weather conditions

• Wind load

• Heat dissipation

• Viewing angle

• Maintenance access

For very large screens viewed from long distances, a larger pixel pitch can often provide a better cost-performance balance.

How Does Pixel Pitch Affect LED Screen Cost?

Pixel pitch can have a major impact on LED display cost.

For the same physical screen area:

Smaller pixel pitch → more pixels → more LED components → higher cost

For example, reducing the pixel pitch from P4 to P2 greatly increases pixel density.

P4 provides approximately:

62,500 pixels/m²

P2 provides:

250,000 pixels/m²

This means a P2 display contains approximately four times as many pixels per square meter as a P4 display.

The project should therefore not be evaluated only by asking:

“Which pixel pitch is better?”

A better question is:

“Which pixel pitch provides enough resolution and image quality for my viewing distance and application?”

This approach can help buyers avoid unnecessary investment.

What Are Common Mistakes When Choosing LED Pixel Pitch?

Choosing the Smallest Pixel Pitch Automatically

A very small pitch may increase cost without providing a visible improvement when the viewing distance is long.

Ignoring the Minimum Viewing Distance

The closest important viewers should be considered when selecting the display.

Focusing Only on Resolution

Image quality also depends on brightness, refresh rate, grayscale, contrast, color consistency, and the control system.

Ignoring Screen Dimensions

The same pixel pitch can produce very different resolutions depending on screen size.

Ignoring the Source Content

A high-resolution LED display cannot turn low-quality video or images into high-quality content automatically.

Ignoring Camera Requirements

For broadcast and stage applications, refresh rate and camera compatibility can be just as important as pixel pitch.

Ignoring LED Module and Cabinet Dimensions

The final screen dimensions must normally match the physical dimensions of the selected modules and cabinets.

How to Choose Pixel Pitch for a Real Project?

Consider an indoor conference room project with the following conditions:

• Screen width: approximately 5 m

• Minimum viewing distance: approximately 3 m

• Main viewing distance: 3–8 m

• Content: presentations, charts and videos

• Installation: fixed indoor LED wall

Possible options may include P1.5, P1.86, P2 and P2.5.

P1.5

P1.5 offers high pixel density and good close-range detail. It may be appropriate when the screen frequently displays small text or detailed graphics and the budget allows for a fine-pitch solution.

P1.86

P1.86 can provide a balance between close-view image detail and overall project cost for many meeting and presentation environments.

P2

P2 remains suitable for many corporate LED display applications where viewers are several meters away.

P2.5

P2.5 can provide a more economical solution if most viewers are not extremely close to the display and the content mainly consists of videos, presentations and larger graphics.

The final choice should therefore depend on the actual seating arrangement, content detail, required resolution, and budget.

How Can LISN LED Help You Choose the Right Pixel Pitch?

Choosing an LED display requires more than selecting between P1.5, P2.5, P3.91 or P6.

A complete LED display solution should consider:

• Indoor or outdoor application

• Screen dimensions

• Minimum viewing distance

• Required resolution

• Main content

• Brightness requirements

• Installation method

• Maintenance access

• Control system

• Camera requirements

• Project budget

To receive a more accurate recommendation from LISN LED, you can provide the following project information:

1. Indoor or outdoor installation

2. Required screen width and height

3. Minimum viewing distance

4. Main content type

5. Fixed or rental installation

6. Installation photos or drawings

7. Special requirements such as camera shooting or front maintenance

Based on these details, LISN LED can help evaluate suitable pixel pitch, screen resolution, cabinet configuration, and other key specifications for your LED display project.

FAQs About Choosing LED Screen Pixel Pitch

What does P2.5 mean on an LED screen?

P2.5 means the center-to-center distance between two adjacent LED pixels is approximately 2.5 mm. For the same physical screen size, P2.5 provides higher pixel density than P3 or P4.

How do I choose LED screen pixel pitch?

Start with the minimum viewing distance, then consider screen size, required resolution, content, indoor or outdoor environment, camera requirements, and budget.

Is a smaller LED pixel pitch always better?

No. A smaller pixel pitch provides higher pixel density, but it also normally increases project cost. If viewers are far from the screen, the additional resolution may not provide a meaningful visual benefit.

Which is better, P2 or P3 LED display?

P2 provides higher pixel density and is more suitable for closer viewing. P3 can be more cost-effective when viewers are farther away. The better option depends on the actual project.

What pixel pitch is suitable for an indoor LED wall?

Indoor LED walls commonly use pixel pitches ranging from below P1 to approximately P4, depending on viewing distance, screen size, image detail, and application.

What pixel pitch is suitable for an outdoor LED display?

P4, P5, P6, P8 and P10 are common outdoor pixel pitches. Large screens with long viewing distances may also use larger pitches.

Is P3.91 suitable for rental LED displays?

P3.91 is widely considered for rental, stage, exhibition, and event LED screens because it can provide a practical balance between viewing distance, image quality, cabinet configuration, and project cost.

Does smaller pixel pitch mean higher resolution?

For LED screens with the same physical dimensions, a smaller pixel pitch normally means more pixels and therefore a higher screen resolution.

How can I calculate LED screen resolution?

Divide the screen width by the pixel pitch to estimate horizontal resolution, and divide the screen height by the pixel pitch to estimate vertical resolution. Make sure the screen dimensions and pixel pitch use the same measurement unit.

Conclusion

Knowing how to choose LED screen pixel pitch can help buyers achieve the right balance between image quality, viewing distance, screen resolution, and project cost.

A smaller pixel pitch can provide greater image detail for close-view applications, while a larger pitch may be more economical for large screens viewed from longer distances.

Instead of selecting the smallest pixel pitch available, consider the complete project environment:

• Where will the LED display be installed?

• How close will viewers be?

• How large will the screen be?

• What type of content will be displayed?

• Will cameras capture the screen?

• What resolution is actually required?

• What is the available project budget?

If you are unsure whether your project needs P1.5, P1.86, P2.5, P3.91, P6, P8 or another pixel pitch, provide LISN LED with your screen size, installation environment, viewing distance, and application requirements.

LISN LED can help you select an LED display configuration that meets the required visual performance without paying for unnecessary pixel density.
