What is SMD2727 and SMD3535 of LED Displays?

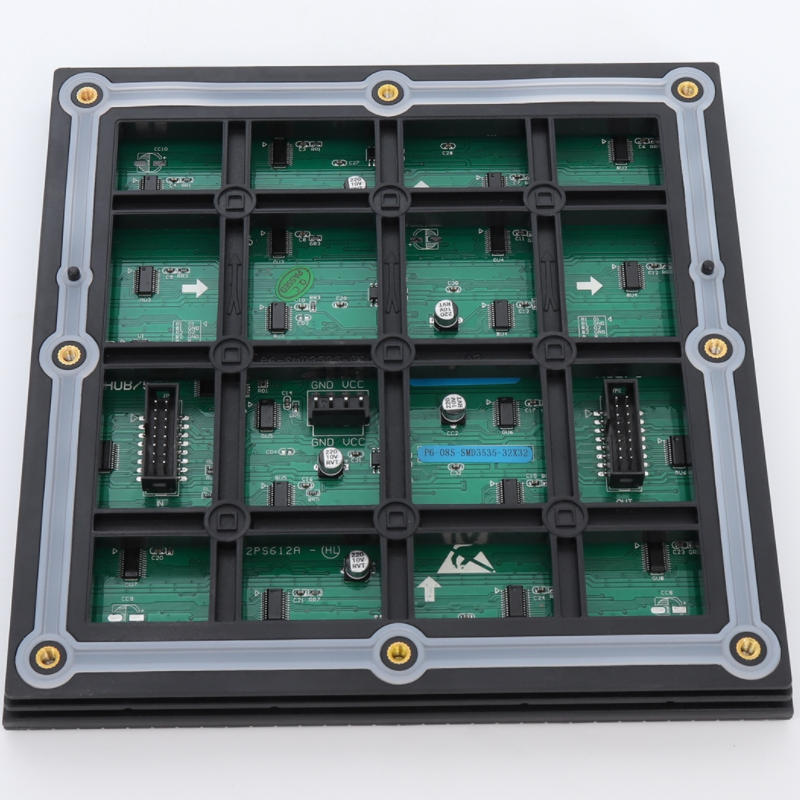

We often encounter SMD2727 and SMD3535 in the technical specifications of LED displays or on the back of LED modules. But what exactly do they mean? These codes refer to the lamp beads used in LED displays. Specifically, SMD2727 and SMD3535 are two types of surface-mounted device (SMD) LEDs, named according to their package dimensions — 27mm × 27mm and 35mm × 35mm, respectively.

While both types serve as key light sources for LED displays, they differ significantly in size, power consumption, brightness, and application environments. The smaller SMD2727 is commonly used in outdoor LED screens that require moderate brightness and compact design, whereas the larger SMD3535 offers higher power and superior brightness, making it ideal for large-scale or high-brightness outdoor displays.

In short, understanding the difference between SMD2727 and SMD3535 helps users choose the right LED display based on project requirements such as brightness level, energy efficiency, and durability.

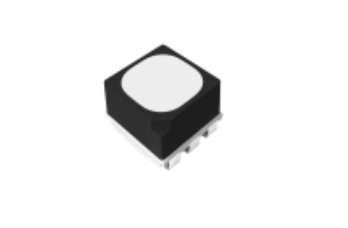

SMD2727:

1)means the size of the lamps, length and height same 27mm.

2)it's rated power: 0.2W ~ 0.5W and driving current: 60mA ~ 150mA round.

3)The small size results in limited heat dissipation area, which requires PCB heat dissipation design.

Long-term high-power operation may affect the lifespan.

4) that means when compare with SMD3535, the brightness are lower. normally for a P6 outdoor led display, the brightness is like 5000nit around

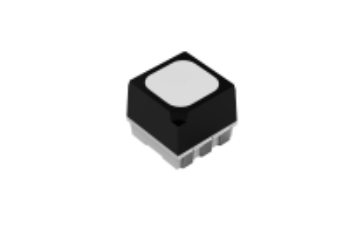

SMD3535:

1)means the size of the lamps, length and height are 35mmx35mm.

2)it's rated power: 0.5W ~ 2W and driving current: 150mA ~ 700mA round.

3)Larger size and heat dissipation structure (such as metal substrate) support better thermal management.

More suitable for long-term high-power operation and better stability. Normally, for a P6 outdoor led display, the brightness is like 6500nit around.

4) that means when compare with SMD2727, the brightness are higher.

SMD2727 vs SMD3535

Which SMD LED Is Right for Your Project?

Choosing between SMD2727 and SMD3535 depends on your installation environment, viewing distance, brightness requirements, and project budget.

As a general guideline:

If your project requires long operating hours, strong sunlight visibility, or superior heat dissipation, SMD3535 is generally the preferred solution. For projects with moderate brightness requirements and tighter budgets, SMD2727 offers an economical alternative.

Why Choose LISN LED?

Choosing the right LED package is only one part of building a reliable LED display. The manufacturing quality of the LED module, PCB design, driving IC, waterproof protection, and aging tests all have a significant impact on long-term performance.

LISN LED provides complete LED display manufacturing solutions with:

• High-quality SMD2727 and SMD3535 LED modules

• Strict brightness and color consistency control

• Professional waterproof outdoor display solutions

• Factory direct pricing

• OEM & ODM customization

• CE, RoHS and international quality standards

• Technical support before and after delivery

Our engineering team can recommend the most suitable LED solution based on your project requirements instead of simply offering the highest-priced option.

Applications of SMD3535 LED Displays

SMD3535 LED displays are widely used in projects requiring high brightness and excellent durability, including:

• Outdoor Digital Billboards

• Highway LED Signs

• Sports Stadium Screens

• Shopping Mall Advertising Displays

• Building Facade LED Screens

• Transportation Information Displays

• Airport LED Displays

• Large Commercial LED Video Walls

For environments exposed to direct sunlight or continuous operation, SMD3535 provides excellent brightness retention and long-term stability.

Conclusion

For outdoor LED displays such as P6, P8, and P10, LISN LED typically adopts SMD3535 to ensure superior brightness, durability, and long working life. Its higher power capacity and excellent heat dissipation make it ideal for maintaining stable performance under varying outdoor conditions. Compared with smaller models like SMD2727, SMD3535 provides more vivid and consistent visuals, ensuring that large-scale displays perform reliably day and night. For businesses seeking long-lasting outdoor LED solutions, LISN LED’s SMD3535-based displays deliver both quality and value, making them a trusted choice for professional LED display projects.

FAQs

What is the difference between SMD2727 and SMD3535 in LED displays?

SMD2727 and SMD3535 differ mainly in size, brightness, and power handling. SMD2727 is smaller and designed for moderate brightness needs, while SMD3535 is larger, supports higher power, and offers stronger brightness for outdoor use. The latter also provides better heat dissipation, ensuring a longer lifespan for outdoor LED displays.

Why is SMD3535 preferred for outdoor LED displays?

SMD3535 LEDs are built to withstand outdoor conditions such as sunlight, temperature changes, and moisture. Their higher brightness (around 6500 nits) and robust heat management ensure that the display remains clear and stable over time. This makes them ideal for large outdoor installations like shopping malls, stadiums, and digital billboards.

Can SMD2727 be used for outdoor displays?

Yes, SMD2727 can be used outdoors but is better suited for semi-outdoor or covered environments. Its smaller lamp size limits brightness and heat dissipation, which may affect performance under strong sunlight or long-term high-power operation. For demanding outdoor conditions, SMD3535 remains the more reliable option.

How does heat dissipation affect LED display lifespan?

Efficient heat dissipation prevents LEDs from overheating, which can cause brightness decay and color inconsistency over time. SMD3535 uses metal-based substrates to enhance heat management, significantly extending the operational life of the LED display even during continuous use.

Why choose LISN LED for outdoor display solutions?

LISN LED provides high-quality LED displays designed with top-grade components like SMD3535 to ensure stability, brightness, and longevity. Their products are tailored to meet diverse application needs — from advertising screens to architectural installations — offering clients reliable performance and excellent visual impact in any environment.

Need Help Choosing Between SMD2727 and SMD3535?

Not sure which LED package is suitable for your project? Our LED display specialists can recommend the best solution based on:

• Viewing distance

• Installation location

• Brightness requirements

• Screen size

• Climate conditions

• Budget

• Maintenance requirements

Whether you are planning a retail display, stadium project, digital billboard, or custom outdoor LED screen, LISN LED can provide professional recommendations and customized manufacturing services.
