Dance Floor LED Display

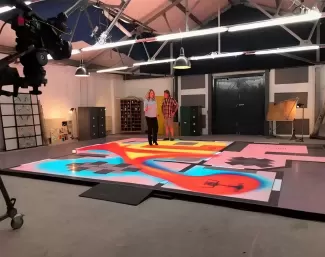

LISN LED's Dance Floor LED Display is designed for interactive floor installations in event venues, entertainment spaces, stages and commercial environments. Combining a high-strength iron cabinet, a protective PC surface and responsive interactive technology, this LED floor screen delivers dynamic visual effects while supporting foot traffic and interactive activities.

Available in 500 × 500 mm and 500 × 1000 mm cabinet sizes, the system supports P2.976, P3.91 and P4.81 LED modules. Its modular structure allows multiple panels to be assembled into different floor display layouts to meet project requirements.

LISN dance floor led display is a standard size 500mmx500mm and 500mmx1000mm design, the cabinet is made from strong Iron material with slim thickness 85mm.

The cabinets compatible with modules size 250mmx250mm like P2.976, P3.91 and P4.81

The modules on the cabinet covered by high quality PC to make it waterproof and dust-proof. People can hold their drinks or wine dancing and enjoying the happy moment.

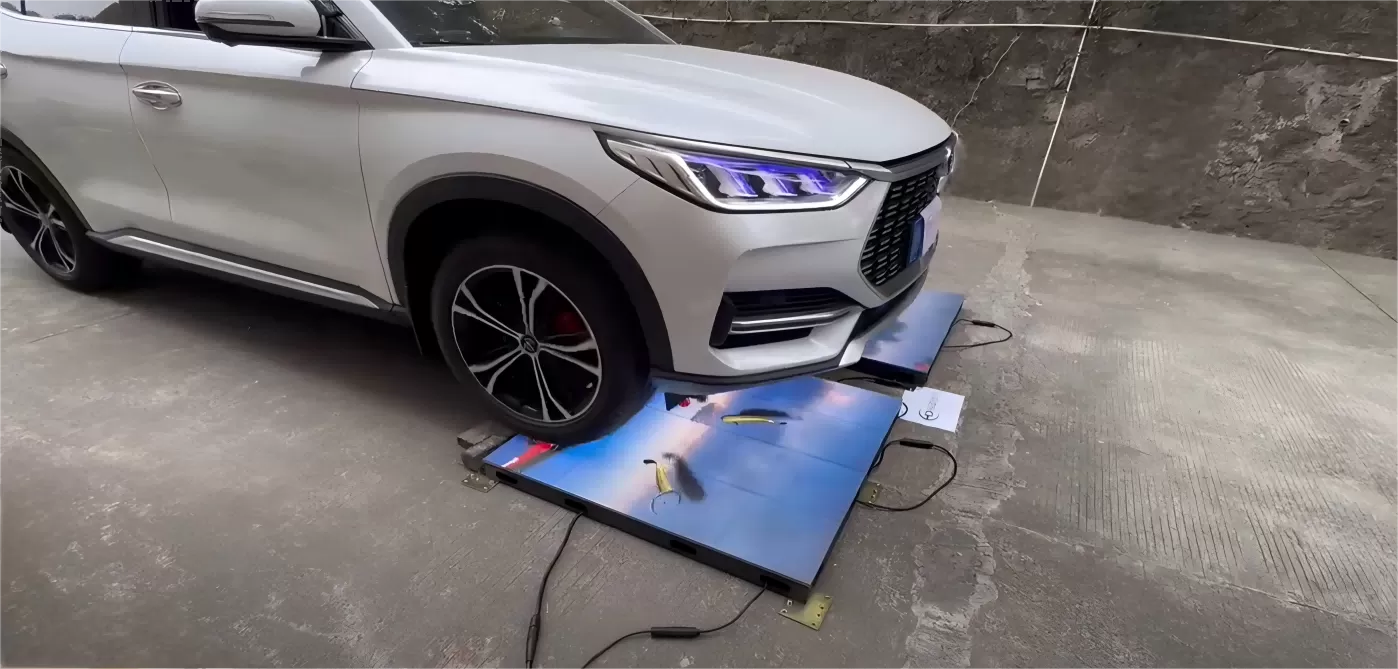

Each cabinet can bear weight over 1300KG for many people in the dance floor with the supporting legs, no worries to break down the dance floor led display.

The most important and attractive point is fast and high interaction of dance floor led display. The response time is only 50 microseconds. The point-to-point and multi-point interaction are not limited by interaction points. The built-in optical sensing chip does not require external interactive sensing devices and is not affected by external light or radio waves.

Which Dance Floor LED Display Configuration Is Right for Your Project?

The right dance floor LED display configuration depends on viewing distance, screen dimensions, audience interaction requirements and installation conditions.

Before placing an order, confirm:

• Required floor display dimensions and cabinet layout

• Expected audience traffic and load-bearing requirements

• Indoor or outdoor installation environment

• Interactive functions and content control requirements

• Viewing distance and preferred pixel pitch

• Power supply, control system and installation arrangements

LISN can help evaluate these requirements and recommend a suitable configuration for your project.

Different venues have different floor dimensions, audience capacities and visual requirements. LISN provides customized Dance Floor LED Display configurations to support different project designs.

Customization Options

• Cabinet Dimensions: Standard 500 × 500mm and 500 × 1000mm cabinets, with customized dimensions subject to project requirements.

• Pixel Pitch: Select suitable pixel pitch configurations according to viewing distance and display requirements.

• Cabinet Structure: Iron or aluminum cabinet options according to project design.

• Interactive Functions: Configure interactive display requirements for different entertainment and commercial applications.

• Display Layout: Plan cabinet arrangement according to floor dimensions and installation conditions.

Project Support

LISN's professional R&D and technical teams provide assistance with product selection, project configuration and technical requirements. From initial planning to production and delivery, we work with customers to develop suitable LED display solutions for their projects.

Contact LISN with your floor dimensions, installation environment and display requirements to discuss a customized solution.
