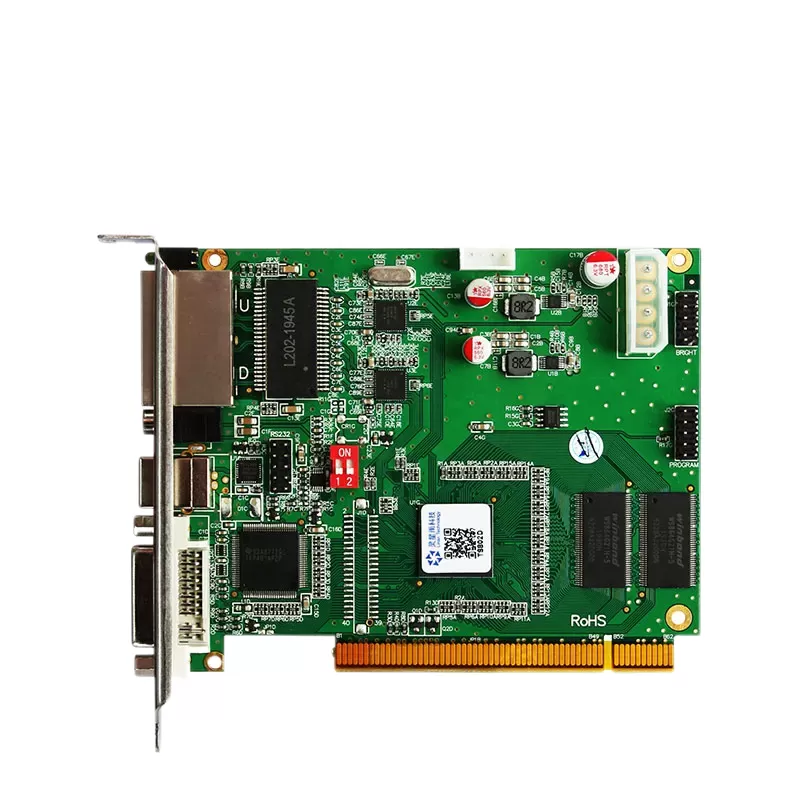

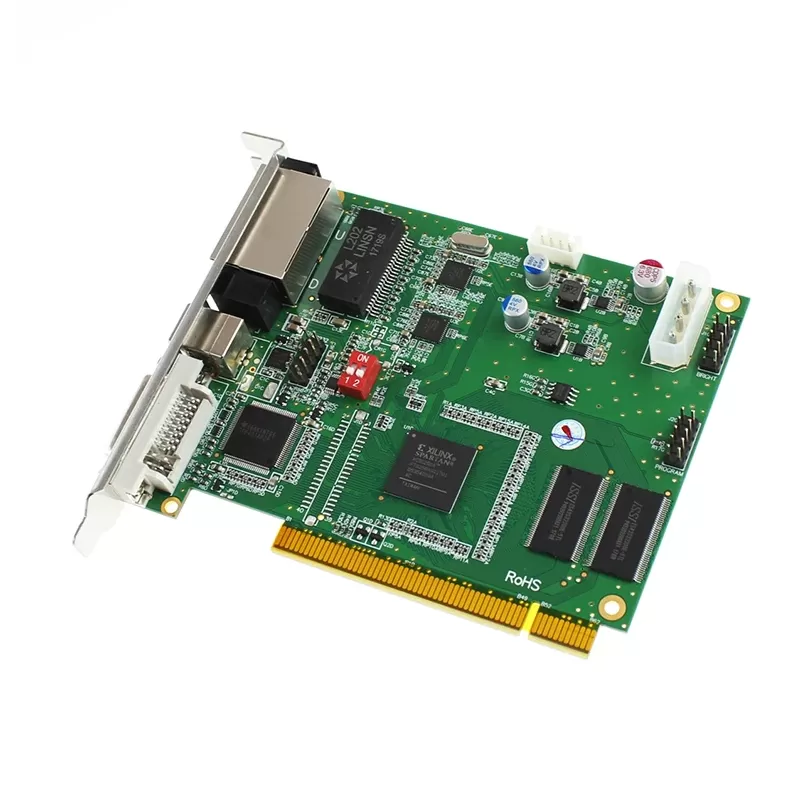

LINSN LED Sending Card TS802D
TS802 is a sending card for full color led screen
supports both single and double color led screen
One card can support 1310720 pixels
supports 4032 pixels in width at most, support 2048 pixels at most in height
TS802 is a sending card for full color led screen
supports both single and double color led screen
One card can support 1310720 pixels
supports 4032 pixels in width at most, support 2048 pixels at most in height
The Lisn TS802D LED Sending Card (also called L202 LED Sender Card) is a versatile and powerful solution designed for full-color LED screens, supporting single and double-color displays. With a maximum pixel capacity of 655360 and support for widths up to 4,032 pixels and heights up to 2,048 pixels, this sending card offers exceptional control and flexibility. Packed with advanced features like audio transmission, cascade function, rotation and zoom capabilities, multi-display synchronization, and more, the TS802D empowers users to create stunning visual displays with ease.
1) One DVI video signal input;
2) One Audio signal input；
3) Sending card is set by USB; can be cascaded to drive a larger screen, up to 4 cards cascaded；
4) Two network outputs; single port maximum support 655360 pixels；
5) Supports adjusting brightness manually (requires working with outer box) ； three scales can be set:16-grade, 32-grade and 64-grade；
6) Supports 60Hz and 30Hz output mode；
| 60Hz mode（using two ports） | 30Hz mode（using two ports） |
| 2048 × 640 | 4032 × 512 |
| 1920 × 672 | 3840 × 544 |
| 1792 × 720 | 3584 × 576 |
| 1600 × 800 | 3392 × 608 |
| 1472 × 880 | 3200 × 640 |
| 1344 × 960 | 3072 × 672 |
| 1280 × 1024 | 2880 × 704 |
| 1024 ×1280（require supporting by graphics card） | 2560 × 800 |
832 ×1280（ require supporting by graphics card ) | 2368 ×864 |
| 640 × 1280 （ require supporting by graphics card ） | 2048× 1024 |
The TS802D LED Sending Card is suitable for different LED display projects requiring reliable signal transmission and screen control.
Used for outdoor advertising screens, shopping malls, retail displays, and commercial information screens.
Provides stable video transmission for concerts, events, exhibitions, and entertainment stage backgrounds.
Suitable for rental LED screens requiring flexible installation and quick configuration.
Used in conference rooms, control centers, exhibition halls, and public information displays.
Supports large-scale LED advertising displays requiring stable long-distance signal transmission.
LISN LED provides reliable LED display components and control system solutions for global customers.
We supply high-quality LED control products with strict inspection before shipment.
With experience in LED display solutions, LISN LED understands different project requirements and helps customers select suitable control components.
Direct manufacturer supply helps customers reduce procurement costs and improve project competitiveness.
Our team provides product selection support, installation guidance, and technical assistance for LED display projects.
Linsn TS802D LED Sending Card is a professional LED display control device used to transmit video signals from a computer or video processor to LED receiving cards.
It works as the signal transmission interface in an LED display control system, ensuring stable communication between the control computer and LED screen.
The TS802D, also known as Linsn L202 Sending Card, is widely used for full-color, dual-color, and single-color LED displays, including advertising screens, stage LED displays, rental LED screens, and commercial video walls.
An LED sending card is an important component in an LED display control system.
Its main functions include:
Receiving video signals from a computer or video processor
Processing and transmitting display data
Sending control signals to LED receiving cards
Synchronizing image and video output
Managing LED screen display parameters
Compared with a normal video output device, an LED sending card is specially designed for LED display systems and supports large-scale screen control.
The Linsn TS802D LED Sending Card supports:
Full-color LED displays
Dual-color LED displays
Single-color LED displays
It is compatible with various LED display applications, including indoor LED screens, outdoor LED billboards, stage LED screens, rental LED displays, and commercial video walls.
The TS802D supports a maximum loading capacity of up to 1,310,720 pixels depending on the LED display configuration.
The maximum display width and height can be adjusted according to the screen resolution, receiving cards, and system setup.
For large LED display projects, multiple sending cards can be cascaded to expand the control capacity.
The main features include:
DVI video signal input
Audio signal transmission support
USB communication interface
Multiple sending card cascade support
Full-color LED display control
Screen parameter configuration
Display rotation and scaling adjustment
Stable signal transmission performance
These functions make TS802D suitable for professional LED display projects requiring reliable control performance.
Yes.
The TS802D supports audio input and transmission, allowing synchronized audio and video output for applications such as:
Stage LED screens
Concert displays
Exhibition LED walls
Commercial multimedia displays
Yes.
Multiple TS802D LED Sending Cards can be cascaded to control larger LED display systems.
This function allows users to expand display size and improve system flexibility for large LED screens.
The TS802D can be configured through Linsn LED control software, including LEDStudio and related configuration tools.
Users can set:
LED screen parameters
Receiving card settings
Display resolution
Brightness and color adjustment
Screen connection configuration
Both TS802D and TS801 are Linsn LED sending cards designed for LED display control.
The main differences are related to:
Loading capacity
Hardware configuration
Supported functions
Application requirements
TS802D is a commonly used model for full-color LED display projects requiring stable signal transmission and flexible configuration.
Yes.
Linsn TS802D is also commonly known as the Linsn L202 Sending Card.
Different suppliers or users may refer to this product using either model name.
The general installation process includes:
Install the sending card into the control computer
Connect the DVI video input
Connect network cables between sending card and receiving cards
Configure LED screen parameters using Linsn software
Test image output and system performance
Professional installation is recommended for large LED display projects.
Common reasons include:
Incorrect screen configuration settings
Wrong receiving card parameters
Loose network cable connections
Incorrect resolution settings
Software configuration errors
Check the LED control software settings and hardware connections to solve common display problems.
Yes.
The TS802D can be used for outdoor LED displays when combined with suitable LED modules, receiving cards, power systems, and protective structures.
Typical applications include:
Public information screens
Large outdoor billboards
The TS802D is widely applied in:
For shopping malls, retail stores, commercial advertising, and information displays.
For concerts, events, exhibitions, and entertainment backgrounds.
For temporary installations requiring flexible setup and stable control.
For meeting rooms, exhibition halls, and corporate display systems.
The suitable sending card depends on:
LED screen resolution
Pixel loading capacity
Receiving card model
Display application
Required functions
Number of LED cabinets
LISN LED can help customers select suitable LED control components according to their project requirements.
Yes.
LISN LED provides professional LED control system products and supply services for global customers.
We support:
Bulk purchasing
Product selection assistance
Technical consultation
LED display project support
Reliable shipment service
Yes.
TS802D can be integrated into customized LED display projects based on different screen sizes, resolutions, and application requirements.
Our team can help recommend suitable control solutions according to your LED display specifications.
