P2.5 indoor led display module 320mmx160mm

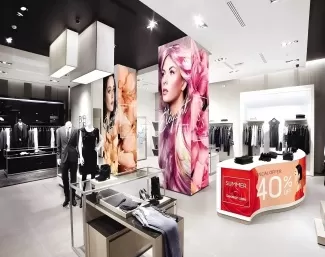

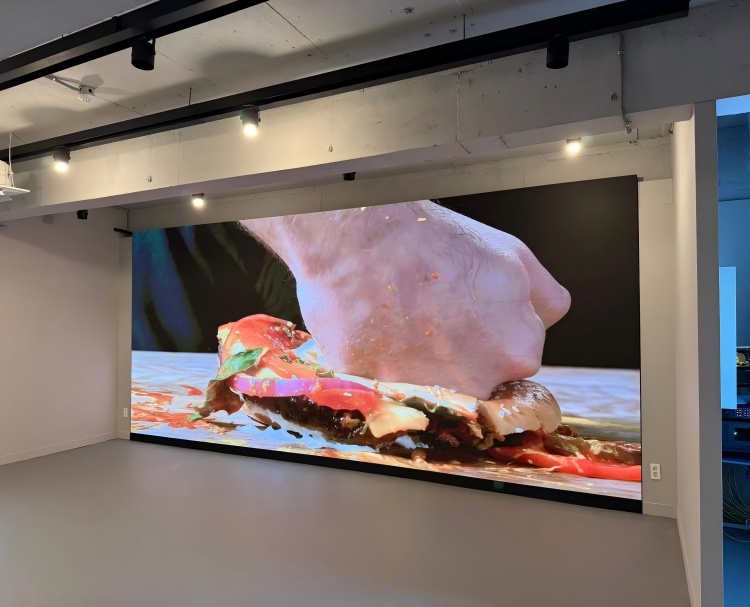

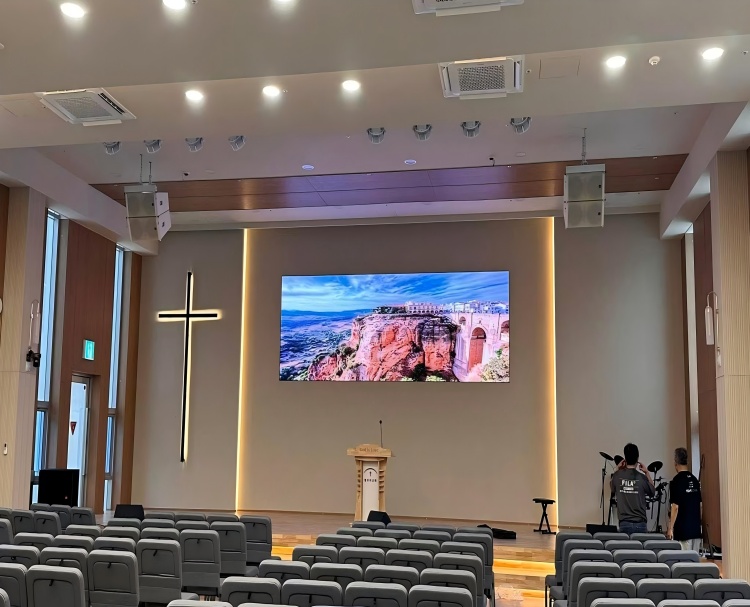

  Indoor LED display screens are becoming increasingly smaller in size, mainly used for conference room video broadcasts or remote conferences, and shopping mall advertising. Compared with other extremely small sizes such as P1.25, P1.5, and P1.6, P2.5 is becoming more and more popular because of its affordable price, beautiful playback effect, and suitable viewing distance.

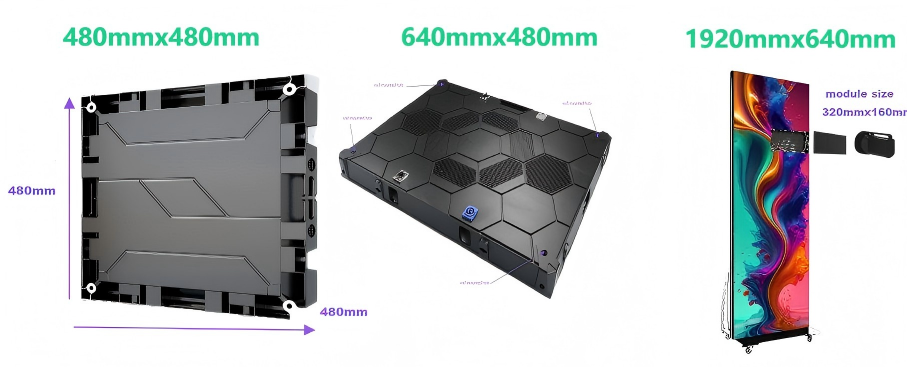

  The viewing distance of P2.5 is 2.5-25m, which can basically meet the display effect of a 25 square meter space. The regular size of 320x160mm makes it very suitable for fixed installation and customized size, or some fixed sizes such as die-casting aluminum such as 480MMX480MM, 640X480MM or advertising machine 1920x640mm. Therefore, it is a module size that is very suitable for fixed installation and rental display.

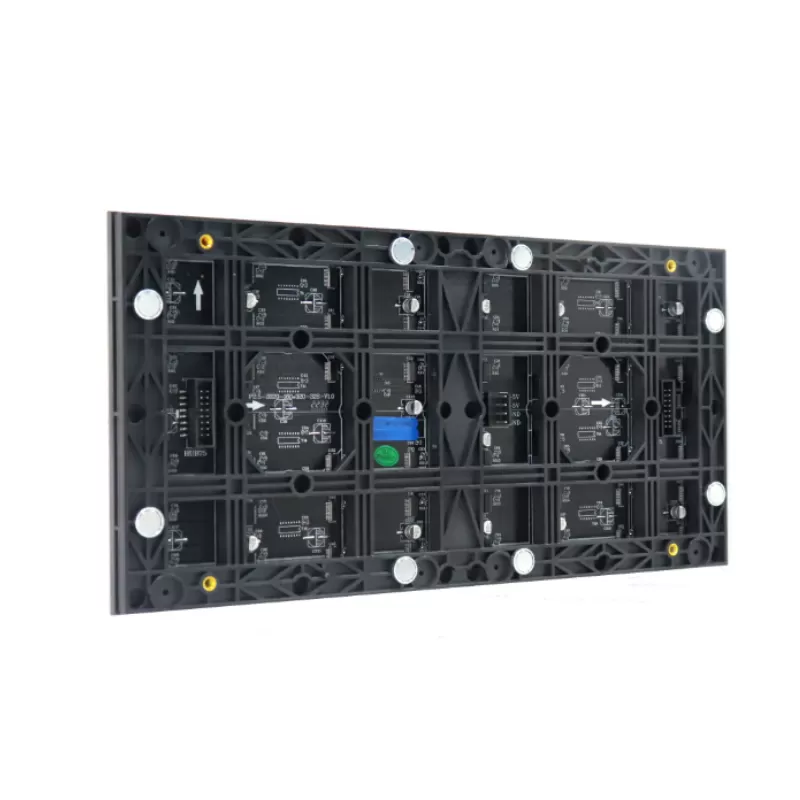

  The indoor P2.5 320x160mm module uses SMD1515 lights, but the distance can reach 140 degrees left and right. There are 128x64 points on each board, and 160,000 points per square meter.

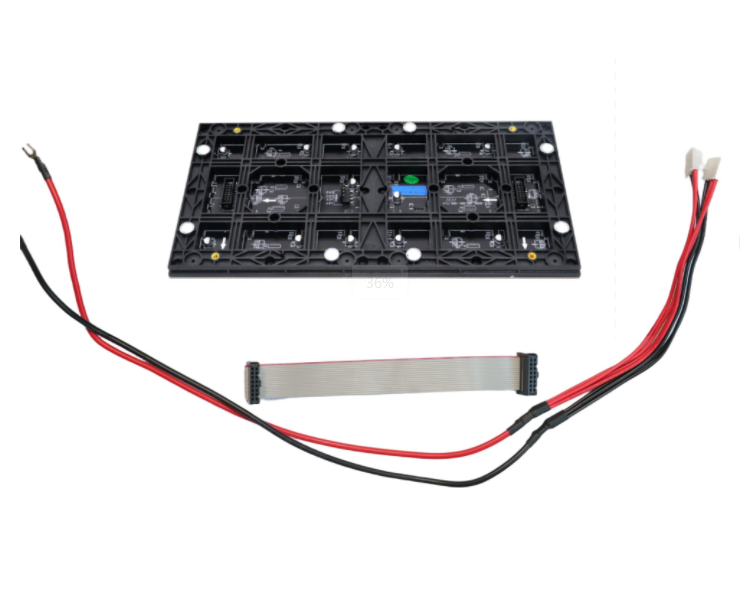

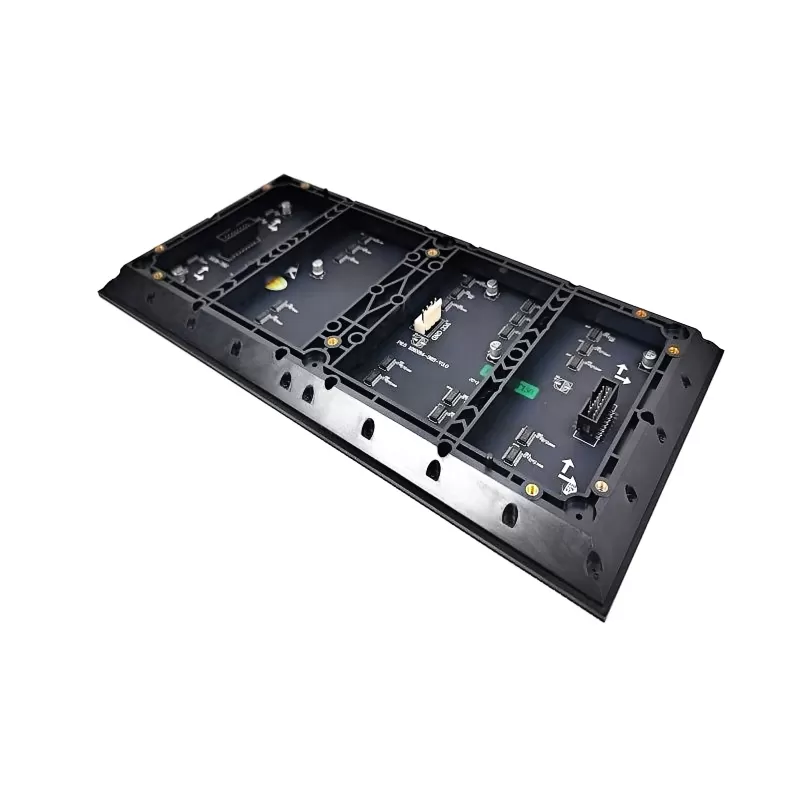

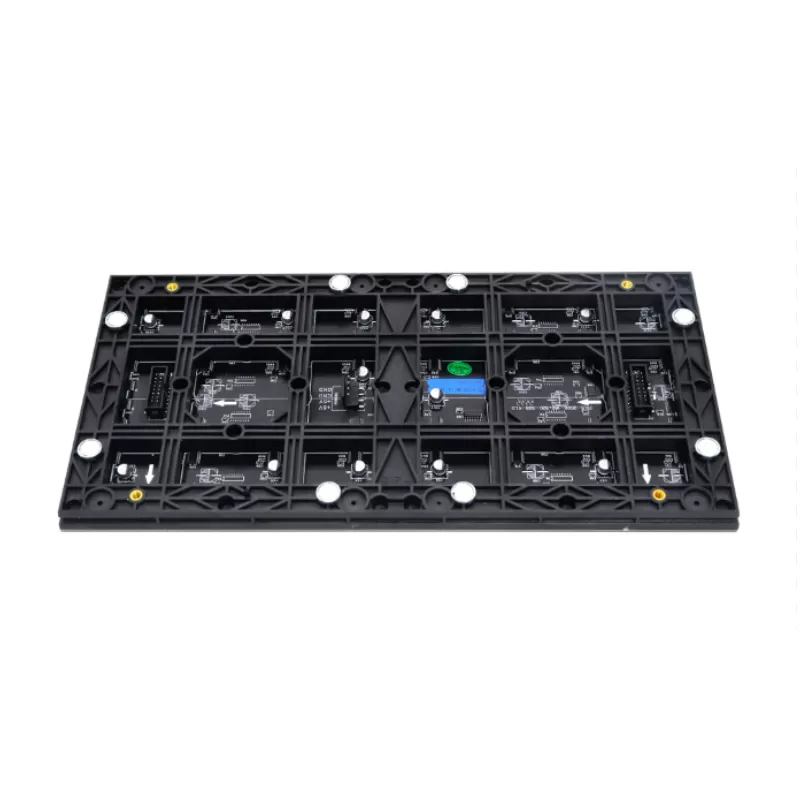

  P2.5 indoor LED display module can be equipped with magnets for front maintenance, which uses an electric suction cup, or screws for rear maintenance with a screwdriver. Usually the power cord and cable are standard, accepting 5V voltage. The maximum power consumption per square meter is about 750W, and the average power consumption is 300W. It is a very low energy consumption module.

  Due to the requirements of playback effect, P2.5 indoor LED display modules are generally high refresh 3840hz or 7680hz, generally using FM6369 or ICN2153, or MBI5153 IC. 1/32 scan, brightness is 400-800nit.

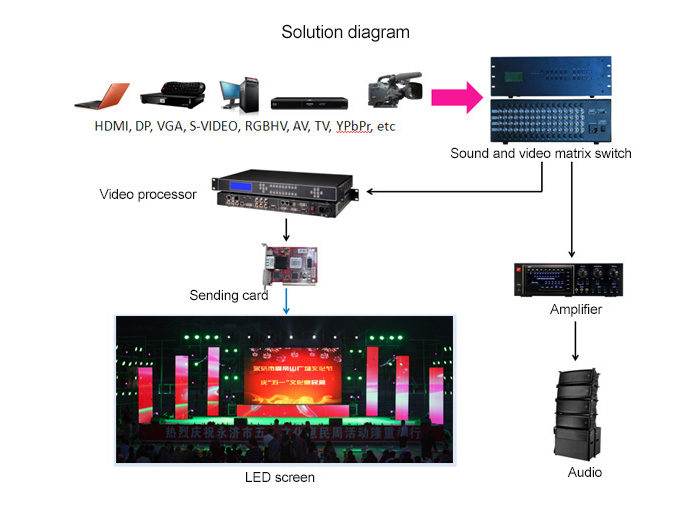

  P2.5 indoor LED display module can be used with many display control systems such as LINSN, NOVA, Colorlight, Grayscale, etc. It is also used by some customers' secondary development systems.

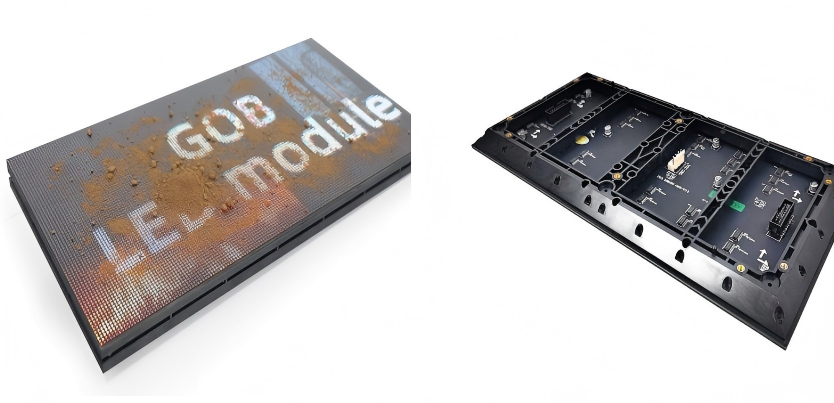

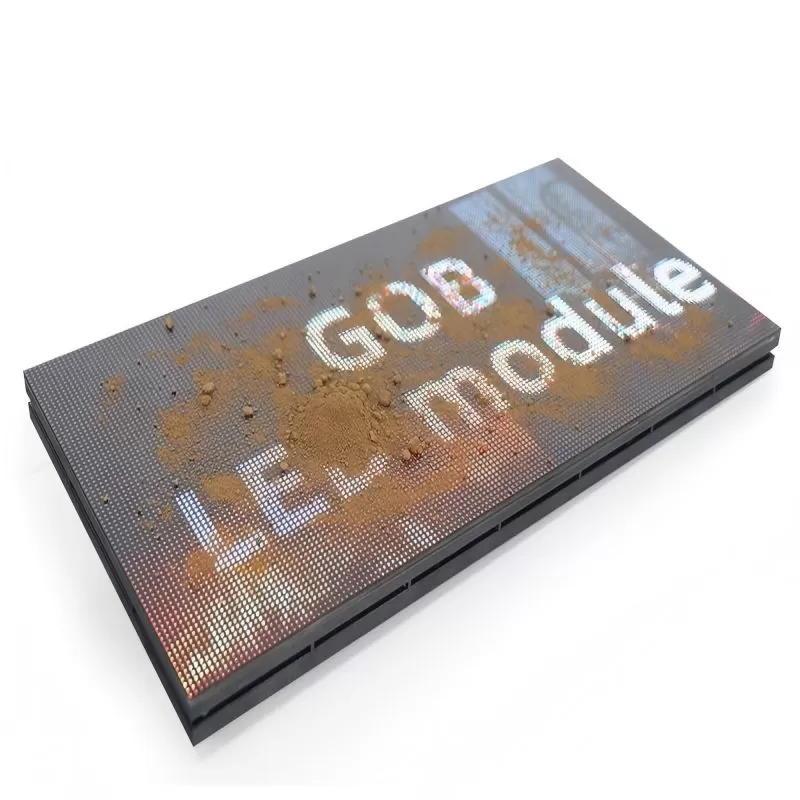

  The weight of P2.5 indoor LED Display module is generally around 0.5KG. It is not waterproof but can be treated with GOB to achieve the effect of surface waterproof and dustproof. also can do 45 degrees cutting

  The packaging is usually in cartons, and in wooden boxes for large quantities. Each module will have an additional dust bag and foam protection.

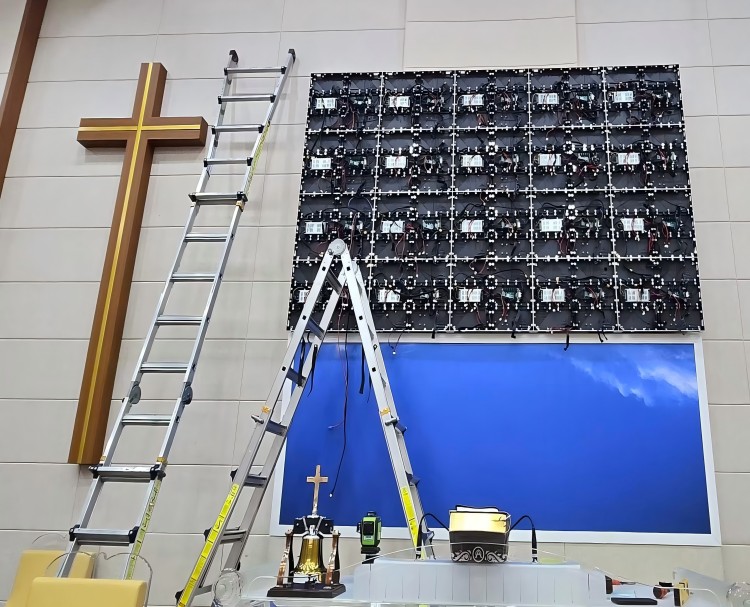

  Indoor P2.5 front maintenance module, because it has magnets and is very light, it is very easy to install. Usually we only need to make a simple aluminum structure, and then we can directly stick the module on it, connect the power and signal lines, and then connect the power and it can be used.
